Draeger
Draeger X-am 5000 Multi-Gas Detector
Configuration: Standard Four-Gas - O2 / LEL / CO / H2S
Commercial & Bulk Pricing
Need case or pallet quantities? Chat with FSS about volume pricing.
Couldn't load pickup availability
Shipping & state availability
Shipping unavailableAK, HI, DC, WA, WV
Product Overview

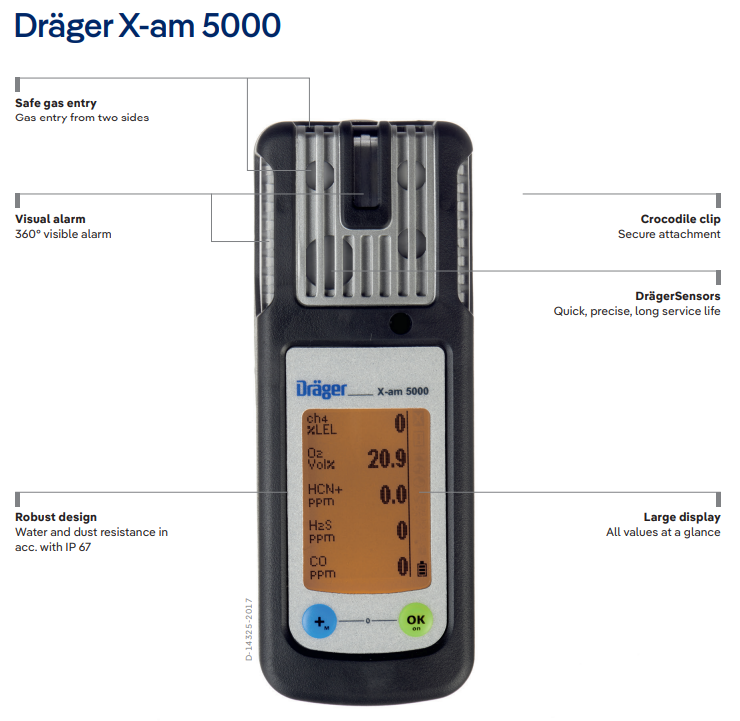

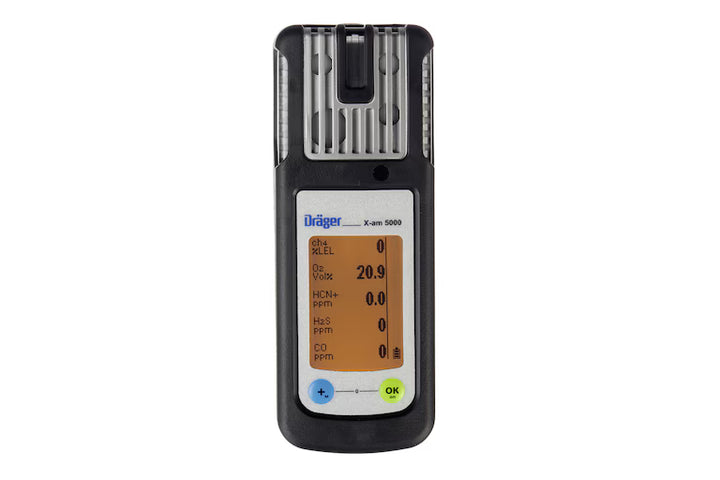

The Dräger X-am 5000 is a portable multi-gas detector for personal air monitoring. It can monitor one to five gases using four sensor positions and catalytic and electrochemical sensor technology. The gases detected depend on the installed sensor configuration.
FSS Configurations
Standard Four-Gas — Dräger configuration VN00118
Oxygen (Oâ‚‚), combustible gas (LEL), carbon monoxide (CO), and hydrogen sulfide (Hâ‚‚S).
Key Features
- Configurable portable multi-gas detector for 1 to 5 gases, with four sensor ports
- Detection depends on the sensors installed — a unit without a phosphine sensor does not detect phosphine
- Catalytic (CAT) and electrochemical (EC) sensor technology
- IP 67 rated, with visual, audible and vibrating alarms
- More than 12 hours of operating time; no internal pump, compatible with the optional external Dräger X-am Pump
- Bump test before use, and calibrate to the interval in the instructions for each installed sensor
More product information
Five-Gas with Low-Range Phosphine — Dräger configuration VN00114
Oxygen (O₂), combustible gas (LEL), carbon monoxide (CO), hydrogen sulfide (H₂S), and phosphine (PH₃) with a 0–20 ppm PH₃ measuring range. This configuration uses the combined Dräger H₂S-LC/CO-LC sensor 6813280, allowing five gases to fit in the instrument's four sensor positions.
Platform Specifications
- Number of gases: 1 to 5, depending on configuration
- Sensor positions: 4
- Sensor technology: Catalytic (CAT) and electrochemical (EC)
- Operating time: More than 12 hours
- Dimensions: Approx. 1.89 × 5.12 × 1.73 in
- Instrument weight: Approx. 7.76 oz
- Battery type: NiMH
- Ingress protection: IP 67
- Internal pump: None; compatible with the optional external Dräger X-am Pump
Use Notes
A unit detects only the gases covered by its installed sensors; the standard four-gas configuration does not detect phosphine. Bump test the instrument before use and calibrate each sensor at the interval stated in the applicable Dräger instructions. Follow the fumigant label, applicable regulations, site procedures, and the Dräger instructions for use. A detector reading does not by itself establish clearance, re-entry authorization, or worker safety.
Need help with your application?
FSS helps commercial grain and food-handling facilities with equipment selection, setup and application planning.
